clunking front end

Does your Mitsubishi L300 make a strange noise? Need wheel alignment specs?
Post Reply
User avatar
rdub
Posts: 261
Joined: Wed May 23, 2007 7:18 pm
Member's Photo Album: http://www.delica.ca/Photos/
Location: aldergrove

clunking front end

Post by rdub »

Lately when driving on the logging roads the front end dose not feel solid,its clunking when driving over the smaller bumps,washboard,it feels like my front end is loose in the wheels. Im thinking the stearing arms are worn out cause i feel it in the steering wheel,it's not solid and is really clunking. this seems to be getting worse also when turning to the right there seems to be some noise also like worn bearing, but its not hot and not a grinding noise? .....new shocks and bushings have been done.
I am stable in most situations that I have no reservations in stormy conditions.
User avatar
username
Posts: 100
Joined: Thu Dec 28, 2006 12:11 am
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: 1991 super exceed
Location: clearwater

Re: clunking front end

Post by username »

take a look, maybe you have lost a bushing or two. i had a terrible clunk while going on rough roads, then i discovered one of the bushings was gone, i replaced it and it clunks no more.
User avatar
jessef
Posts: 6459
Joined: Tue Feb 26, 2008 1:27 pm
Vehicle: JDM flavour of the month
Location: Vancouver
Location: Vancouver, BC

Re: clunking front end

Post by jessef »

Sway bar bushings
Ball joints

Jack up your front end. Grab the wheels (top and bottom) and wiggle in and out and check for play.
sid
Posts: 115
Joined: Thu Feb 15, 2007 5:39 pm
Vehicle: 1993 super exceed
Location: north van

Re: clunking front end

Post by sid »

also check your lower control arm bushings. they will clunk if they are loose or worn out. there is 2 on each side. worth a check.

sid.
User avatar
rdub
Posts: 261
Joined: Wed May 23, 2007 7:18 pm
Member's Photo Album: http://www.delica.ca/Photos/
Location: aldergrove

Re: clunking front end

Post by rdub »

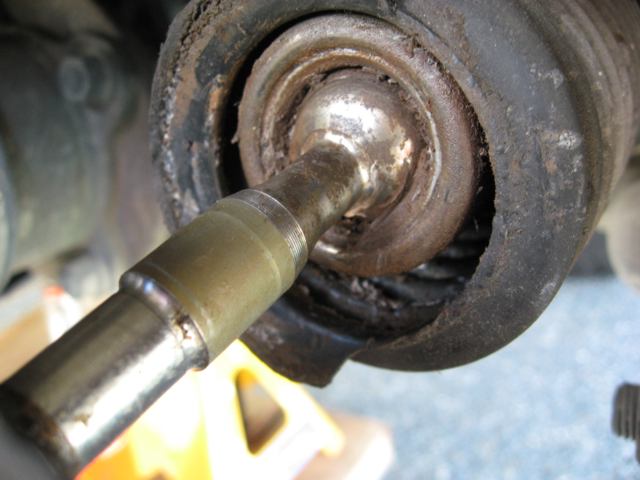

Looks as though i may have a worn out ball joint ,drivers side,there is in and out play at the joint that links the control arm (not the joint at the hub assembly)the boot is split and this must be the problem .....Mardy $$$$,what am i looking at for a new one.and it looks like its not a fun job ,and or can i adjust the nut at the hub area to tighten it in?
Rdub :M
I am stable in most situations that I have no reservations in stormy conditions.
User avatar
rdub
Posts: 261
Joined: Wed May 23, 2007 7:18 pm
Member's Photo Album: http://www.delica.ca/Photos/
Location: aldergrove

Re: clunking front end

Post by rdub »

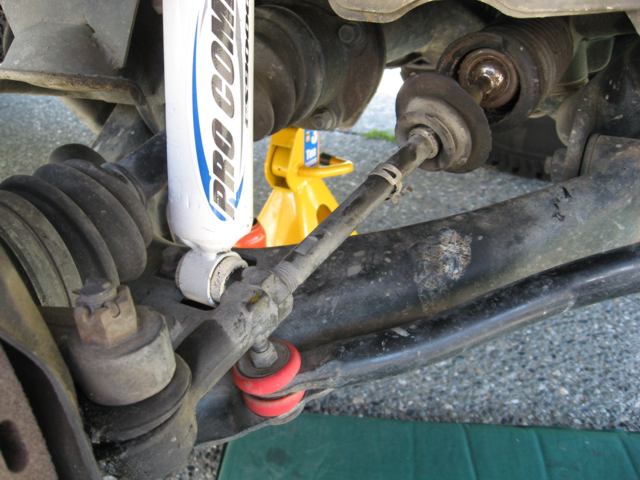

Heres the deal. (problem) :?
Attachments
joint 1.jpg
joint 1.jpg (62.08 KiB) Viewed 3689 times
I am stable in most situations that I have no reservations in stormy conditions.
