Ultimate Oil Filter X-Reference

Post by lrp374 »

Found this info looking for a shorter filter. Seems to have almost every filter brand I can think of. Use @ your own risk of course! A jpg to view and a pdf to save.
Attachments
Oil Filter X-ref.pdf
(265.9 KiB) Downloaded 344 times

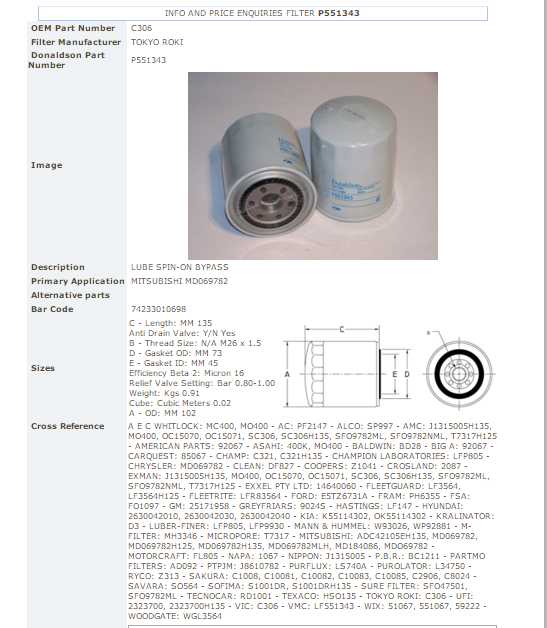

Oil filter x-ref.jpg
Oil filter x-ref.jpg (38.54 KiB) Viewed 4210 times
Top
User avatar
Growlerbearnz
Posts: 2041
Joined: Sat Jun 26, 2010 1:58 pm
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: Delica P25W
Location: New Zealand

Re: Ultimate Oil Filter X-Reference

Post by Growlerbearnz »

Nice! Do you still have access to the original text? Any chance you could copy and paste the text into a post? (even just the cross-reference list would be handy) The .jpg and .pdf are great, but the actual text would be searchable on the forum.
Nothing says "poor workmanship" more than wrinkles in the duct tape.
Top
User avatar
lrp374
Posts: 1023
Joined: Sun Nov 23, 2008 9:56 pm
Vehicle: 91 Super Exceed
Location: Kamloops

Re: Ultimate Oil Filter X-Reference

Post by lrp374 »

This is where it came from:

http://www.michelecaroli.com/info.asp?o ... on=P551343
Top
User avatar
Growlerbearnz
Posts: 2041
Joined: Sat Jun 26, 2010 1:58 pm
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: Delica P25W
Location: New Zealand

Re: Ultimate Oil Filter X-Reference

Post by Growlerbearnz »

Sweet! I'll just leave this here and tidy it up later:

MITSUBISHI MD069782

Length: 135MM
Outside Diameter: 102mm
Anti Drain Valve
Thread Size: N/A M26 x 1.5
Gasket OD: MM 73
Gasket ID: MM 45
Donaldson Part Number P551343

Cross Reference A E C WHITLOCK: MC400, MO400 - AC: PF2147 - ALCO: SP997 - AMC: J1315005H135, MO400, OC15070, OC15071, SC306, SC306H135, SFO9782ML, SFO9782NML, T7317H125 - AMERICAN PARTS: 92067 - ASAHI: 400K, MO400 - BALDWIN: BD28 - BIG A: 92067 - CARQUEST: 85067 - CHAMP: C321, C321H135 - CHAMPION LABORATORIES: LFP805 - CHRYSLER: MD069782 - CLEAN: DF827 - COOPERS: Z1041 - CROSLAND: 2087 - EXMAN: J1315005H135, MO400, OC15070, OC15071, SC306, SC306H135, SFO9782ML, SFO9782NML, T7317H125 - EXXEL PTY LTD: 14640060 - FLEETGUARD: LF3564, LF3564H125 - FLEETRITE: LFR83564 - FORD: E5TZ6731A - FRAM: PH6355 - FSA: FO1097 - GM: 25171958 - GREYFRIARS: 9024S - HASTINGS: LF147 - HYUNDAI: 2630042010, 2630042030, 2630042040 - KIA: K55114302, OK55114302 - KRALINATOR: D3 - LUBER-FINER: LFP805, LFP9930 - MANN & HUMMEL: W93026, WP92881 - M-FILTER: MH3346 - MICROPORE: T7317 - MITSUBISHI: ADC42105EH135, MD069782, MD069782H125, MD069782H135, MD069782MLH, MD184086, MDO69782 - MOTORCRAFT: FL805 - NAPA: 1067 - NIPPON: J1315005 - P.B.R.: BC1211 - PARTMO FILTERS: AD092 - PTPJM: J8610782 - PURFLUX: LS740A - PUROLATOR: L34750 - RYCO: Z313 - SAKURA: C1008, C10081, C10082, C10083, C10085, C2906, C8024 - SAVARA: SO564 - SOFIMA: S1001DR, S1001DRH135 - SURE FILTER: SFO47501, SFO9782ML - TECNOCAR: RD1001 - TEXACO: HSO135 - TOKYO ROKI: C306 - UFI: 2323700, 2323700H135 - VIC: C306 - VMC: LF551343 - WIX: 51067, 551067, 59222 - WOODGATE: WGL3564
Nothing says "poor workmanship" more than wrinkles in the duct tape.
Top
psychedelica
Posts: 10
Joined: Sun Nov 01, 2009 1:21 pm
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: 1991 Exceed

Ultimate Oil Filter X-Reference

Post by psychedelica »

Updated Growlerbearnz's excellent post with more info from http://www.yoyopart.com, http://www.filterspro.com and reformatted for easier reading. (As before, use @ your own risk, but you're probably OK if the specs of your filter are equal or better to Mitsubishi specifications shown below.)

Mitsubishi Oil Filter MD069782

Specifications
Length: 135MM
Outside Diameter: 102mm
Anti Drain Valve
Thread Size: M26 x 1.5
Gasket OD: MM 73
Gasket ID: MM 45
Efficiency Beta 2: Micron 16
Relief Valve Setting: Bar 0.80-1.00

Other Manufacturers' Equivalent Filters
Donaldson Part Number P551343
A E C WHITLOCK: MC400, MO400
AC: PF2147
ACDelco: X4252E
ALCO: SP997
AMC: J1315005H135, MO400, MO-400K, OC15070, OC15071, SC306, SC306H135, SFO9782ML, SFO9782NML, T7317H125
AMERICAN PARTS: 92067
ASAHI: 400K, MO400
ASHIKA: 10-05-505P
BALDWIN: BD28
BIG A: 92067
BOSCH: 0 986 452 042, P2042
CARQUEST: 85067
CHAMP: C321, C321H135, LFP 805
CHAMPION LABORATORIES: LFP805, K 270, K270/606
CHRYSLER: MD069782
CLEAN: DF827 - COOPERS: Z1041
COOPERS: Z 1041
CROSLAND: 2087
DELPHI: FX0152
DONALDSON: P 50-2061
EXMAN: J1315005H135, MO400, OC15070, OC15071, SC306, SC306H135, SFO9782ML, SFO9782NML, T7317H125
EXXEL PTY LTD: 14640060
FIAAM: FT5151
FILTRON OP 587
FLEETGUARD: LF3564, LF3564H125
FLEETRITE: LFR83564
FORD: E5TZ6731A
FRAM: PH6355
FSA: FO1097
GM: 25171958
GREYFRIARS: 9024S
HASTINGS: LF147
HENGST FILTER: H209W
HYUNDAI: 26300-42000, 2630042010, 2630042030, 2630042040
JAPANPARTS: JFO505, J FO-505P, J FO-505S
KIA: K55114302, OK55114302
KRALINATOR: D3
LUBER-FINER: LFP805, LFP9930
M-FILTER: MH3346
MAGNETI MARELLI: 150290100100
MANN & HUMMEL: W93026, WP92881
MANN-FILTER: WP 928/81
MAZDA: VSY3-14-302, VSY1-14-302A
MEAT & DORIA: 15037, 15037/12
MECAFILTER: ELH4224
MICRO FILTER: T7317
MICROPORE: T7317
MITSUBISHI: ADC42105EH135, MD069782, MD069782H125, MD069782H135, MD069782MLH, MD184086, MZ690071, 1230A045, 1230A045C, 1230A114
MOTAQUIP: VFL304
MOTORCRAFT: FL805
NAPA: 1067
NIPPON/NIPPARTS: J1315005
P.B.R.: BC1211
PARTMO FILTERS: AD092
PTPJM: J8610782
PURFLUX: LS740A
PUROLATOR: L34750, L37733, L27998
QUINTON HAZELL: WL7154
RYCO: Z313
SAKURA: C1008, C10081, C10082, C10083, C10085, C2906, C8024
SAUDI FILTER: SF55
SAVARA: SO564
SOFIMA: S1001DR, S1001DRH135, S 3454 DR
SURE FILTER: SFO47501, SFO9782ML
TECNOCAR: RD1001
TEXACO: HSO135
TOKYO ROKI: C306
UFI: 2323700, 2323700H135
UNICO FILTER: BI 10126/81
UNIPART: GFE 329
VIC: C306
VMC: LF551343
WIX: 51067, 551067, 59222
WOODGATE: WGL3564
