Hey all,
So my factory keyless entry on my 98 Chamonix stopped working (yes I change the fob battery) , the fob looked to be on its last legs any way.
I bought a cheap new system on amazon- https://www.amazon.ca/Remote-Central-Lo ... op?ie=UTF8
And found the original stock control unit by the rear speaker, but I am an electrical dunce so can anyone tell me which wires are which?

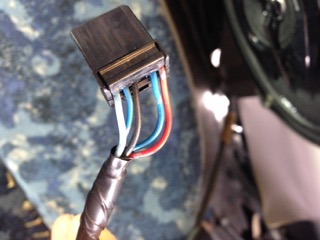

Pic is of the connector coming from the stock controller/reciever.
Keyless Entry Install Wiring
-
Jackass
- Posts: 14
- Joined: Mon Mar 17, 2014 8:53 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica
- Location: Sherwood Park
Keyless Entry Install Wiring
- Attachments
-
- IMG_2726.jpeg (25.31 KiB) Viewed 2231 times
-
Jackass
- Posts: 14
- Joined: Mon Mar 17, 2014 8:53 am
- Member's Photo Album: http://www.delica.ca/Photos/
- Vehicle: Delica
- Location: Sherwood Park
Re: Keyless Entry Install Wiring
Can some one decipher these to plain english for me lol ?
- Attachments
-
- Keyless Entry 2.pdf
- (166.33 KiB) Downloaded 192 times
-
- Keyless Entry 1.pdf
- (206.85 KiB) Downloaded 191 times
