Series 1 L400 ECU Pin Layout Diagram

Mitsubishi Delica L400 production commenced in 1994 -- After much anticipation, the L400 arrived on Canadian Soil in 2009!
Post Reply
sinjin
Posts: 31
Joined: Wed Aug 03, 2016 7:16 am
Member's Photo Album: http://www.delica.ca/Photos/
Vehicle: 97 Delica L400 V6 SWB Super Exceed
Location: British Columbia

Series 1 L400 ECU Pin Layout Diagram

Post by sinjin »

I searched high and low for this, and finally found a very helpful guy on delicaclub that eventually emailed it to me. I figured I would post it here for everyone's benefit. :M

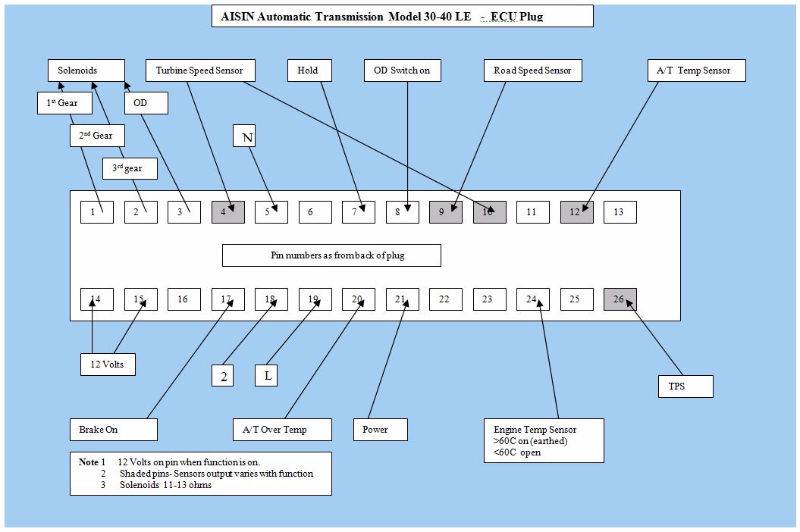

ECU Pin Layout Diagram for Series 1 L400
ECU Pin Layout Diagram for Series 1 L400
ECU Pin Layout.JPG (244.64 KiB) Viewed 2142 times
